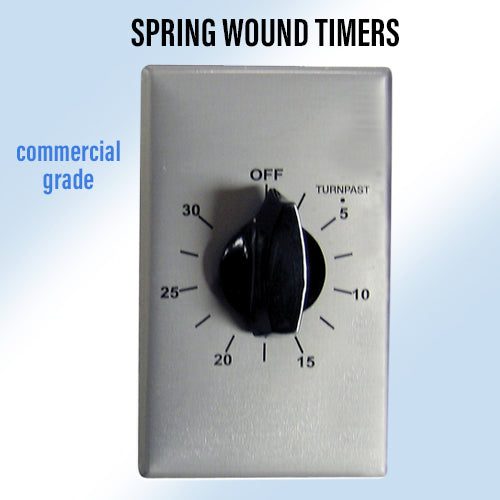

Ideal for indoor or outdoor lighting, heat lamps, and various pool and spa equipment.
Easy to install two-wire design will fit into any standard single gang wall box.
| Model | Timing Range | Price |
|---|---|---|
| PM15M | 0-15 minutes | $41.80 |
| PM30M | 0-30 minutes | $48.20 |
| PM60M | 0-60 minutes | $49.50 |
| PM12H | 0-12 hours | $49.70 |
Specifications:
| Features | Description |
|---|---|
| Switch: | Single pole, single throw (SPST). Switch circuit is in an open position at the end of the timing cycle |
| Ratings: | 20 amps, 125 V.A.C., 1 H.P. 10 amps, 250 V.A.C. 10 amps, 277 V.A.C. 7 amps, 125 V.A.C., Tungsten |
| Operating Temperature Range: | 14 degree F. to 104 degree F -10 degree C. to 40 degree C |
| Storage Temperature: | -50 degree F. to 180 degree F -46 degree C. to 82 degree C |
| Cover Plate: | Brushed aluminum |
Additional Information
| Commercial Timer | PM12H, PM15M, PM30M, PM60M |
|---|
