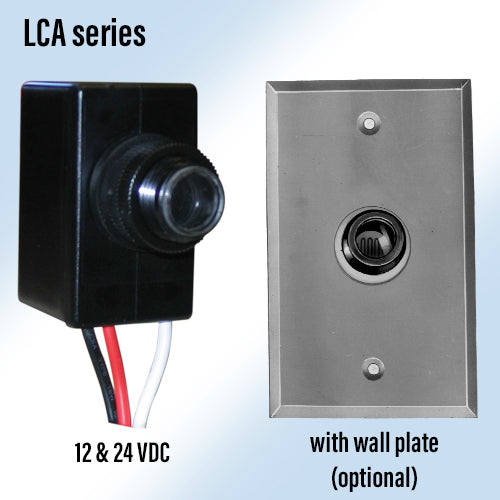

LCA Series - Specifically designed for use inside compatible light fixtures or in weatherproof enclosures 2" in diameter or larger. Wall plate is optional.
The body or housing of the LCA series must be mounted in a weatherproof enclosure to assure protection from water damage. Only the threaded portion is weatherproof. Do not exceed 16 volts on 12 VDC models or 36 volts on 24 VDC/VAC models. Exceeding those limits will damage the control and void the warranty. In some cases, you may want to consider an external fuse.
CAUTION: IF THE AMBIENT TEMPERATURE INSIDE THE ENCLOSURE EXCEEDS 175 DEGREE F, USE THE OUTDOOR MOUNT MODEL LCS612D. CLICK HERE.
Low Voltage Button Type Photo Controls
| Features | Description |
|---|---|
| Housing: | Durable, high impact Lexan housing, ultrasonically welded for maximum strength. Nylon locknut provided. Compact in size, LCA series can be mounted directly within a lighting fixture or in lighting standards that are 2 inches in diameter or larger |
| Photocell: | Sealed Silicon Sensor |
| Turn-on: | 1 to 3 foot-candles |
| Turn-on/ off Ratio: | 1:1.5 |
| Time Delay: | 1 to 5 seconds |
| Switch Type: | Single-pole, single-throw. Contact position at night normally closed |
| Temperature Range: | -30 Degree to 175 Degree F |
| Lead Wire: | Color-coded lead wire. Wire length: 15 inches |
| Threaded Stem: | 3/8 inch-18 thread; threaded stem 3/4 inches long |
| Dimensions: | 2" high, 1-1/8" wide, 1-3/4" deep (1-1/16" deep including threaded stem) |
LCA Series Specification Chart
| Precision Model | Voltage | Rating & Solar Current | Price |
|---|---|---|---|
| LCA624A | 24 VAC | 7 amps | $77.35 |
| LCA624D | 24 VDC | 7 amps | $77.35 |
| LCA612D | 12 VDC | 7 amps | $77.35 |
| LCA624AW* | 24 VAC | 7 amps | $79.35 |
| LCA624DW* | 24 VDC | 7 amps | $79.35 |
| LCA612DW* | 12 VDC | 7 amps | $79.35 |
* Models with Wall Plate come complete with gasketed metal wall plate (2 3/4" x 4 1/2"), mounting screws, and two nylon locknuts so that units will fit any standard outlet box.
Additional Information
| LCA Series | LCA612D, LCA612DW, LCA624A, LCA624AW, LCA624D, LCA624DW |
|---|
